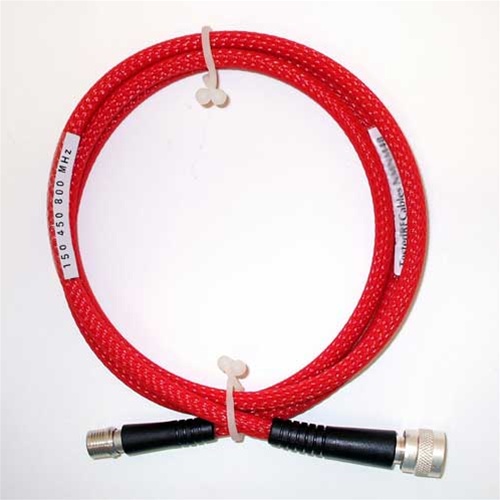

QMA Male to TNC Male Low PIM Field Service Grade RF Test Cable
QMA to TNC Test Cable Low PIM
Field Service Grade RF Test cables are expressly designed for and excel in meeting the needs of field service. The included cable loss data, color coding, and reliability are valuable in development, engineering, or product testing applications as well.

Alternative Views:
Our Price: $119.50


Availability:: Ships in 4 to 7 business days. Cable is custom made at time of order.
Product Code: MMTM

Length


Covering/Color


Calibration Band & Label



CUSTOM CABLE LABEL Specify 3 Marker frequencies [Add $5.00]

Custom Marker Frequencies: 		Select Custom Test Markers in the standard bands (LMR, Cellular Lo, Cellular Hi) [Add $10.00]

Qty:


Description Technical Specs

CABLE

Description

Features

ü Military quality connectors

ü Excellent strain relief

ü Color coded braid protects cable and enhances safety

ü Fully Tested Mechanically and Electrically

ü Test Data included

ü Protective caps for the connectors

ü 1 year Warranty

Cable

  • MIL-C-17 Spec
  • Silver plated copper stranded center conductor
  • Solid PTFE dielectric
  • Silver plated copper dual shields
  • FEP outer jacket
  • 0.195” OD

Connectors

QMA

  • Copper, tin, and zinc alloy plated
  • Low PIM with minimal corrosion
  • 500 mating cycles
  • QLF compliant

TNC

  • MIL-C-39012 Spec
  • Silver plated military quality
  • 500 mating cycles
